BlueSolar 30W - 12V Mono Panel

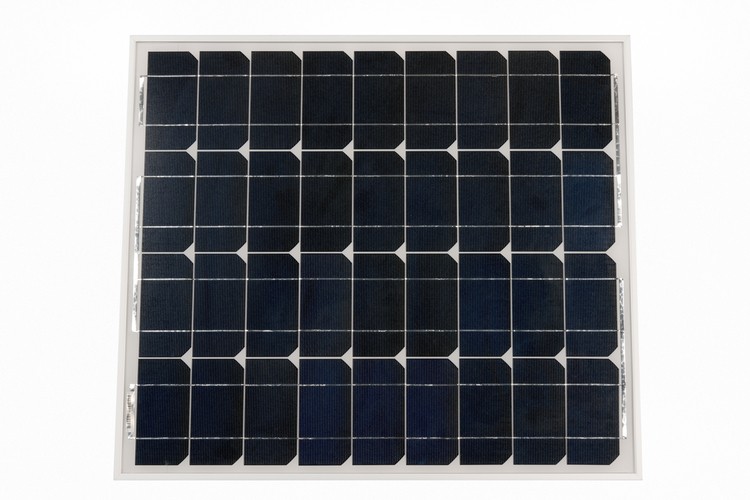

BlueSolar-Panel-Monocrystalline-50W-12V-frontClick to enlarge product image
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| BlueSolar 30W - 12V Mono Panel | 06002VT02 | 30.00 | 563 x 350 | £44.06 | £6.25 | Full Details | |
| BlueSolar 55W - 12V Mono Panel | 06002VT03 | 55.00 | 668 x 545 | £73.87 | £6.25 | Full Details | |
| BlueSolar 90W - 12V Mono Panel | 06002VT04 | 90.00 | 780 x 668 | £111.46 | £15.00 | Full Details | |
| BlueSolar 130W - 12V Mono Panel | 06002VT05 | 130.00 | 1200 x 668 | £127.01 | £15.00 | Full Details | |
| BlueSolar 215W - 24V Mono Panel | 06002VT06 | 200.00 | 1580 x 705 | £180.14 | £25.00 | Full Details | |
| BlueSolar 360W - 24V Mono Panel | 06002VT07 | 360.00 | 1980 x 1002 | £247.54 | £99.00 | Full Details | |
| BlueSolar 185W - 12V Mono Panel | 06002VT08 | 185.00 | 1485 x 668 | £149.04 | £25.00 | Full Details | |
| BlueSolar 20W - 12V Mono Panel | 06002VT20 | 20.00 | 440 x 350 | £37.58 | £6.25 | Full Details | |
| BlueSolar 40W - 12V Mono Panel | 06002VT21 | 40.00 | 668 x 425 | £50.54 | £6.25 | Full Details | |
| BlueSolar 305W - 20V Mono Panel | 06002VT22 | 305.00 | 1658 x 1002 | £259.20 | £99.00 | Full Details | |
| BlueSolar 150W - 12V Mono Panel | 06002VT23 | 150.00 | 1485 x 668 | £127.01 | £15.00 | Full Details |
Victron BlueSolar Monocrystalline panels are manufactured to the same high standards of all Victron equipment. The BlueSolar panels are designed to provide power to off-grid, domestic, motorhomes and boat systems, providing great performance in low-light and minimizing losses in shaded areas. The panels range from 20 watts up to 360 watts.
Features:
- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
- Low voltage to temperature coefficient enhances high-temperature operation.
- High performance bypass diodes minimize the power drop caused by shading.
- Sealed, waterproof and multifunctional junction box gives a high level of safety.
- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
- A sturdy aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting or bespoke systems.
- Highest quality tempered glass provides enhanced impact resistance.
- Pre wired with MC4 connectors for panels of 90 watts or higher.
- 25 Year warranty on the power output and performance.
-
Dimensions: 560 x 350 x 25 mm
- Weight: 2.2kg
- Rating: 30W @ 18.7V, 1.61A
