JA Solar 455W N-type Double Glass Bifacial LB Traceable with MC4-EVO2A connectors (Black Frame)

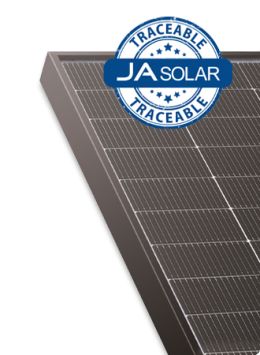

JA Solar 455W N-type Double Glass Bifacial LB Traceable with MC4-EVO2A connectors (Black Frame)Click to enlarge product image
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| JA Solar 445W N-type Bifacial Double Glass Traceable LB All Black with MC4 | 06006HY01 | 445.00 | 1762 x 1134 | £118.70 | £99.00 | Full Details | |
| JA Solar 450W N-type Double Glass Bifacial LB Traceable with MC4-EVO2 connectors (Black Frame) | 06006HY02 | 450.00 | 1762 x 1134 | £117.02 | £99.00 | Full Details | |
| JA Solar 450W N-type Bifacial Double Glass LB All Black with MC4 | 06006HY03 | 450.00 | 1762 x 1134 | £121.25 | £99.00 | Full Details | |
| JA Solar 455W N-type Double Glass Bifacial LB Traceable with MC4-EVO2A connectors (Black Frame) | 06006HY04 | 455.00 | 1762 x 1134 | £118.61 | £99.00 | Full Details | |
| JA Solar 530W N-type Bifacial Double Glass LB Traceable Black Frame MC4 | 06006HY05 | 530.00 | 2063 x 1134 | £126.00 | £99.00 | Full Details | |
| JA Solar 600W n-type Bifacial Double Glass Half-Cell MBB Traceable LB MC4 | 06006HY06 | 600.00 | 2333 x 1134 | £134.45 | £99.00 | Full Details |
JA Solar 455W N-type Double Glass Bifacial LB Traceable with MC4-EVO2A connectors (Black Frame)
- Rating: 455W
- Efficiency: 22.8%
- Height: 1,762mm
- Width: 1,134mm
- Depth: 30mm
- Weight: 22.5kg
- Isc: 14.56 A
- Voc: 39.5 V
Powered by the latest MBB n-type solar cell and half-cell configuration, these modules have higher output power, lower LID, better weak illumination response and better temperature coefficient.
Features:
- High Power Output (455W) : The JA Solar 455W module delivers an exceptional power output, making it an ideal choice for residential, commercial, and industrial applications.
- N-Type Cell Technology: The use of N-type cells enhances the efficiency and longevity of the module.
- Durable Double Glass Design: The double glass construction provides enhanced durability, improving resistance to environmental stresses such as moisture, dust, and temperature fluctuations.
- Bifacial Technology: With bifacial panels, this solar module captures sunlight on both the front and rear sides.
- JA Solar Integrated Traceable System
Product Warranty: 25 year
Linear Power Output Warranty: 30 year
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.
Related Documents
- JAM54D40 430-455 LB BF Superior Warranty 25-30 Years EN
