SolarHub Lighting Kits
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| SolarHub 16 | 03004ST11 | 0.00 | £119.99 | £6.25 | Full Details | ||
| SolarHub 64 | 03004ST13 | 0.00 | £239.99 | £6.25 | Full Details | ||
| SolarHub 16 expansion pack | 03004ST14 | 0.00 | £49.98 | £6.25 | Full Details | ||
| SolarHub 64 expansion pack | 03004ST16 | 0.00 | £69.98 | £6.25 | Full Details | ||
| SolarHub Vintage Kit 1 | 03004ST17 | 0.00 | £169.99 | £6.25 | Full Details | ||
| SolarHub Vintage Kit 2 | 03004ST18 | 0.00 | £249.98 | £6.25 | Full Details | ||
| SolarHub Vintage Kit 3 | 03004ST19 | 0.00 | £319.99 | £6.25 | Full Details |

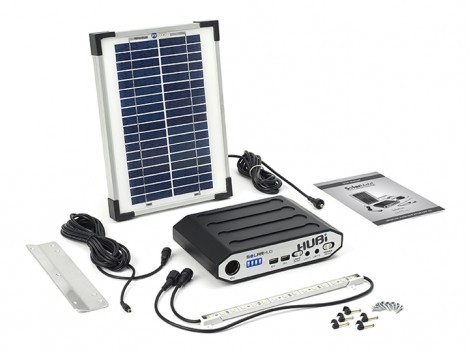

SolarHub 64 is a complete lighting and power kit in a box! The all new Solar Hub lighting kits provide easy to fit lighting and power for stables workshops, sheds, garages – in fact anywhere there is no grid connection.
Using a high efficiency Solar panel, an advanced lithium battery hub and 4 x super bright 300 lumen led Strips / bulbs the SolarHub 64 kit is enough to illuminate a workshop or stable block of 8m x 8m
Exempt from Part P of the Building regulations, SolarHub can be easily and safely installed by anyone. Totally plug and play, the complete system takes no longer than a few minutes to setup and install with no special wiring knowledge or tools needed
Each system is fully expandable so if you require more light you simply add an expansion pack.
The SolarHubs solar panel will collect enough energy during the course of the day (even in Britain) to power its bulb for between 2 and 7 hours every day of the year (2 hours in the winter – 7 hours for the rest for the year based on the 3w LED bulb).
SolarHubs main battery unit has a 2 year warranty and the included solar panel has a 10 year warranty so will easily pay back its investment many times.
SolarHub 64 will illuminate a 64 square meter area.
- Supplied with a 10watt crystalline solar panel, roof / wall fixing kit, 4 x 12volt energy saving LED bulb and all the cables needed
- Takes around 10 minutes to install
- No special tools needed
- Includes 2 x USB outputs that are ideal for charging your phone etc.
Kit Options
- 4 x 3w LED Bulb (300Lm)
- 4 x 3w LED Strip (300Lm)
- 4 x 7w LED Bulb (700Lm) Extra £60
- 4 x 15w LED Bulb (1500Lm) Extra £100
Please note if selecting the 7w or 15w LED bulbs options your run time on the systems will be reduced due to the extra power thiese lights will use.
Panel Information
| Power (Wp) | 10watts |
| Nominal Voltage (Vmp) | 17.5V DC |
| Nominal Current (Imp) | 0.58A |
| Open Circuit Voltage (Voc) | 22.0V |
| Short Circuit Current (Isc) | 0.64A |
| Operating Temperature | -40 to + 85 Deg C |
| Max System Voltage | 1000V DC |
| Dimensions | 397x280x25mm |
| Weight | 1.3Kg |
| Approx. watt-hours/day** | 60W |
| Approx. amp-hours/day** | 3.48A |
** Based on 6 hours of average daily peak sunlight hours
Hubi Information
| Internal battery size | 10Amps |
| Battery Type | Lithium Ion battery |
| Inputs | Solar Panel charging input |
| Mains / Expansion HUBi input | |
| Outputs | 2 x lights outputs |
| 2 x USB outputs (MAX 2A) | |
| 1 x Car Plug (MAX 3A) | |
| Weight | 0.7KG |
| Size | 220mm x 146mm x 50mm |
| Warranty | 2 Years |
Contents
- 1 x STP010 – 10wp solar panel
- 1 x 2.5m Cable (from panel to Hubi)
- 1 x 5m cable (Hubi to LED strip)
- 3 x 2.5m Cables to link the lights together
- 4 x 3w LED Strip (unless another option has been selected).
- 4 x ES bulb holder (Only if LED Bulb has been selected).
- 1 x Solar Panel Mount
- 20 x Cable clips
- 20 x screws
- 1 x Instruction Sheet
Panel Information
| Power (Wp) | 10watts |
| Nominal Voltage (Vmp) | 17.5V DC |
| Nominal Current (Imp) | 0.58A |
| Open Circuit Voltage (Voc) | 22.0V |
| Short Circuit Current (Isc) | 0.64A |
| Operating Temperature | -40 to + 85 Deg C |
| Max System Voltage | 1000V DC |
| Dimensions | 397x280x25mm |
| Weight | 1.3Kg |
| Approx. watt-hours/day** | 60W |
| Approx. amp-hours/day** | 3.48A |
** Based on 6 hours of average daily peak sunlight hours
Hubi Information
| Internal battery size | 10Amps |
| Battery Type | Lithium Ion battery |
| Inputs | Solar Panel charging input |
| Mains / Expansion HUBi input | |
| Outputs | 2 x lights outputs |
| 2 x USB outputs (MAX 2A) | |
| 1 x Car Plug (MAX 3A) | |
| Weight | 0.7KG |
| Size | 220mm x 146mm x 50mm |
| Warranty | 2 Years |
Contents
- 1 x STP010 – 10wp solar panel
- 1 x 2.5m Cable (from panel to Hubi)
- 1 x 5m cable (Hubi to LED strip)
- 3 x 2.5m Cables to link the lights together
- 4 x 3w LED Strip (unless another option has been selected).
- 4 x ES bulb holder (Only if LED Bulb has been selected).
- 1 x Solar Panel Mount
- 20 x Cable clips
- 20 x screws
- 1 x Instruction Sheet
****solar hub lighting kit
By Linda Buchier on 02nd Aug 2017 of: SolarHub Lighting Kits
Telephoned Select solar for more information on their solar hub lighting kits I needed a appropriate lighting kit that could my main lighting for a six stall light stable block. After a very detailed lengthy conversation with Colin he advised me to have the Hubi 64 lighting kit. I explained what I needed from the lighting kit. Colin definitely knew exactly what I was trying to do I had to have a main light then light to the stalls also.
To light my stable block, the main light should give enough coverage to light the main area and then other lights to light the stalls. On Colin’s advice I ordered the strip lights The lighting is very good, enough to muck out by and attend to all my horses.
The panel provides everything that I need and with this kit I can extend by buying extension kits I will definitely be coming back to select solar when the extension kits are required and it was such a pleasant change for someone to have a very in depth conversation with a company and NOT feel pressured to buy anything for someone who gives clear and precise information which actually you understand and takes the time with you. All in all I recommended this lighting kit. I wouldn't like to be without it now.
Thank you Colin
