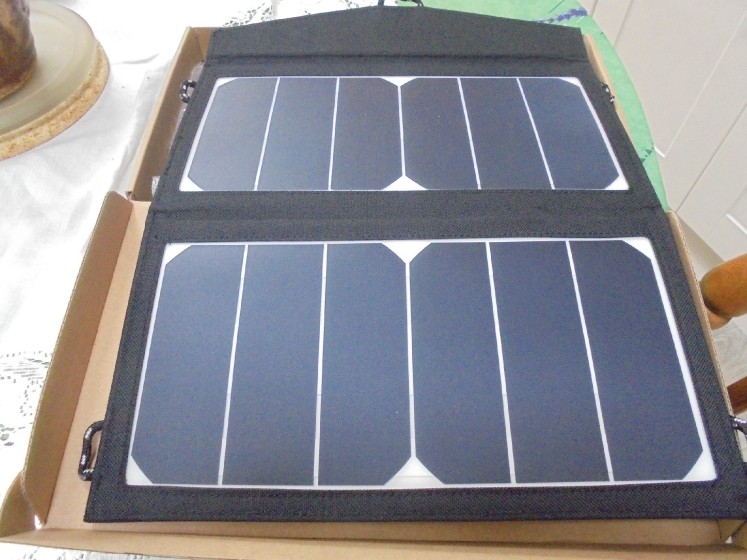

Portable Solar Charger - 14w

DSC01497Click to enlarge product image

Portable Solar Charger - 14w

Products are widely used, suitable for travel, outdoor cycling, camping, etc. Various inconvenient to recharge using digital products, safe and efficient product features, design is convenient and easy to carry, for your outdoor adventure activities.

Product is suitable for mobile phones, MP3, MP4, digital camera, PSP, GPS, iphone, Blackberry, mobile DVD, bluetooth headset, IPOD, bluetooth speakers, hand ring, mini toys and other digital products to charge.


1. Independent design of the power management system (PMS), making the circuit board conversion efficiency of > 90%.

2. The panel is able to provide enough power in low light to ensure power in emergency situations.

3. Have the system automatically detects the light intensity change, make in the cloudy day, cloud cover, and the leaves keep out the sun from low light to bright light for charging the mobile phone to realize automatic restart function.

4. Power supply system with current overload protection, power management system design current of 2.5 A, when the current is greater than this parameter, the PMS will automatically stop outputting, thus protecting important equipment like a   mobile phone.

5. The folding package power management systems with automatic current distribution function, make the battery under different power allows current distribution well, so as to achieve the protection of the battery.

 6. Compact design, can be easily placed in a backpack or handbag.


Cell brand:  Sunpower

Type of Connector: USB

Folding size:

Length x Width x Thickness

295mm x 160mm x 10mm

Open size:

Length x Width x Thickness

390mm x 295mm x 4mm

Weight: 392 g

Power tolerance:  ±3%

Peak power(WP):  12w

Current at Pmax(Imp):  1.9      Voltage at Pmax(Vmp): 6

Short circuit current(Isc):  2     Open circuit voltage(Voc): 6.6

Waterproof:  IP 65

Operating Temperature:  -40͠ to + 85͠ Conversion Efficiency: 22.5%

Temperature Coefficient of Pmax:  -0.48%/͠

Temperature Coefficient of voc:  -0.34%/͠

Temperature Coefficient of ISC:  0.015%/͠      Nominal Operating Cell Temperature: 45+/-2͠

Data under standard testing conditions(STC)       1000W/M²; 1.5AM

  • *
  • *
  • *
  • *
