Rutland 504 Wind Turbine 12V

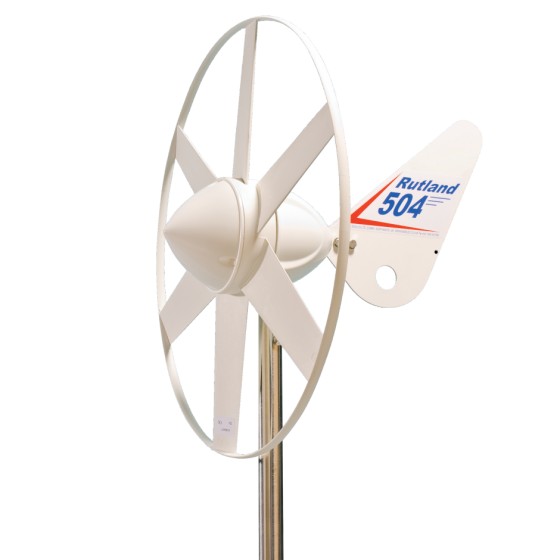

12V Rutland 504 WindchargerClick to enlarge product image
12V Rutland 504 Windcharger

The Rutland 504 is a super compact turbine that is great for using wind power for trickle charging. You can be sure that when you arrive on board your batteries will be well charged up and ready for your appliances. Even whilst sailing the Rutland 504 powers on.

Rutland 504 Specifications

Cut in Windspeed 3 m/s
Output Voltages Available (Nominal) 12V
Power / Current Ratings:
 5m/s     10knots  3W(0.2A)
 11m/s   21knots  29W(2.1A)
 15m/s   29knots  48W(3.4A)
Packed Weight & Dimensions 6 Kg 550x550x260mm
Generator Type Low friction 3 phase, brushless
Yaw Rotation Slipring for 360° free rotation. Low brush wear.
Governing Devices None
Turbine Diameter 510 mm
Turning Radius 304 mm
Net Weight 3.5 kg


  • *
  • *
  • *
  • *
