Rutland FM910-4 Furlmatic Wind Turbine 12/24V

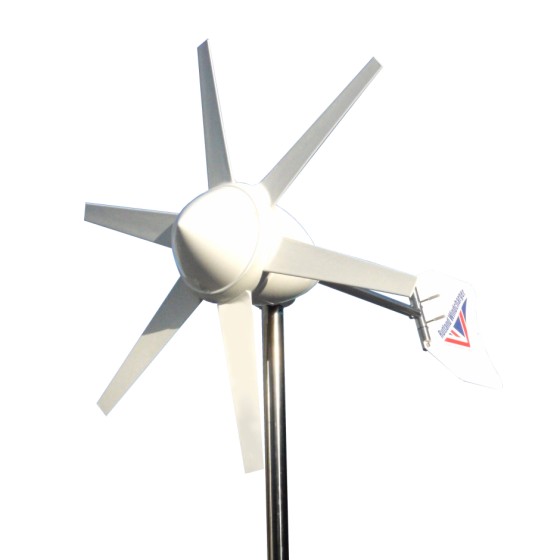

Rutland FM910-4 Furlmatic Wind TurbineClick to enlarge product image
Rutland FM910-4 Furlmatic Wind Turbine
  Name Code Power (W)   Dim. (L x W mm) Price UK Del.
  Rutland FM910-4 Furlmatic Single Battery Wind Turbine 12V 06006ML11 155.00 945 x 344 £699.59 £25.00 Full Details
  Rutland FM910-4 Furlmatic Dual Battery Wind Turbine 24V 06006ML12 155.00 945 x 344 £699.59 £25.00 Full Details

The FM910-4 Furlmatic is without doubt the engineer’s choice of micro wind turbine for battery charging at off grid locations. Countless organisations worldwide have installed tens of thousands of Furlmatics because, simply, their reliability in the toughest weather conditions is so well proven.

Rutland FM910-4 Specifications

Cut in Windspeed 3 m/s
Output Voltages Available (Nominal) 12V 24V
Power / Current Ratings:
5m/s     10knots 19W (1.4A) 19W (0.7A)
11m/s   21knots 92W (6.6) 92W (3.3A)
15m/s   29knots 155W (11.2A) 155W (5.6A)
Packed Weight & Dimensions  16kg 945 x 344 x 262
Generator Type Low friction 3 phase, brushless.
Yaw Rotation Slipring for 360° free rotation. Low brush wear.
Governing Devices Tail fin mechanically furls at 15m/s to reduce turbine speed.
Turbine Diameter 910 mm
Turning Radius 794 mm
Net Weight 13.1 kg



  • *
  • *
  • *
  • *
