Victron 150/70 MPPT Charge Controllers

MPPT 150-70-tr topClick to enlarge product image
MPPT 150-70-tr top
  Name Code Power (W)   Dim. (L x W mm) Price UK Del.

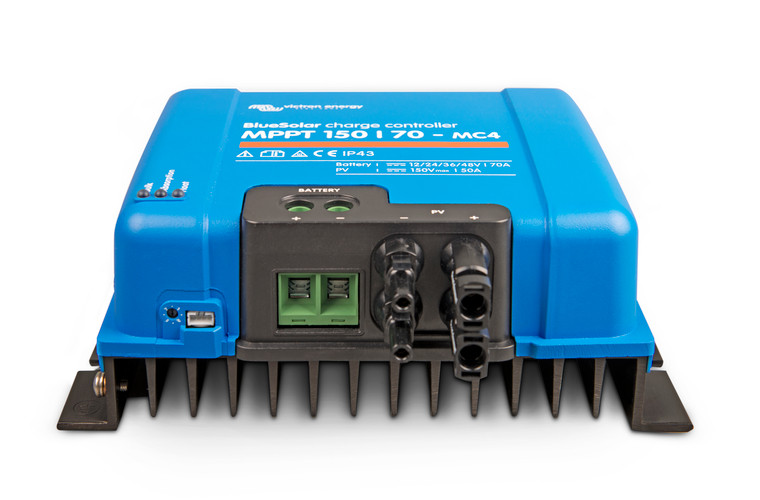

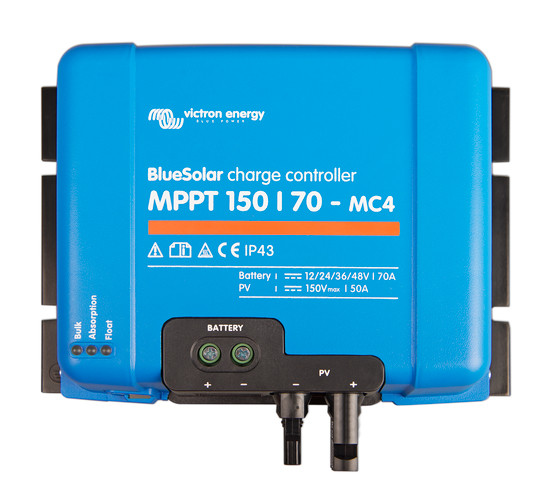

  BlueSolar 150/70 MPPT (12/24/48V) MC4 08002VT031 3360.00 215 x 250 £496.98 £6.25 Full Details

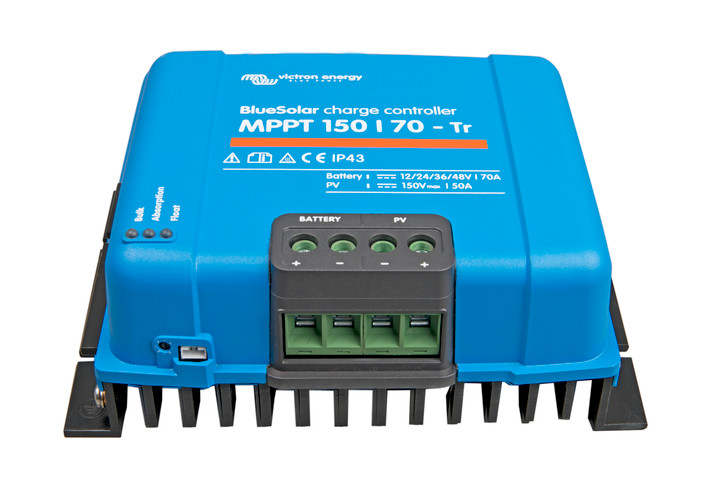

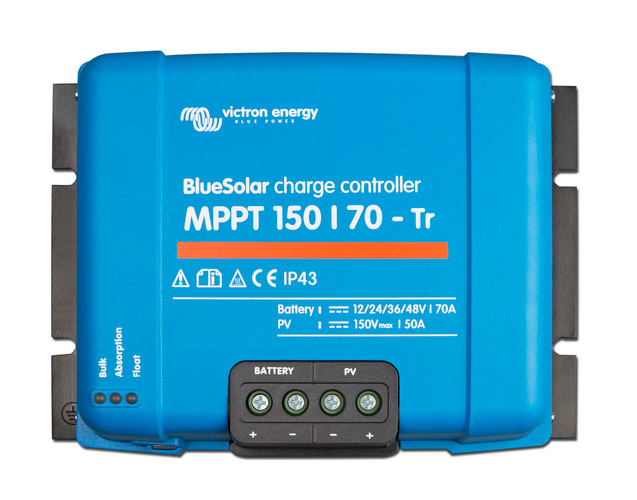

  BlueSolar 150/70 MPPT (12/24/48V) Tr 08002VT032 3360.00 185 x 250 £496.98 £6.25 Full Details

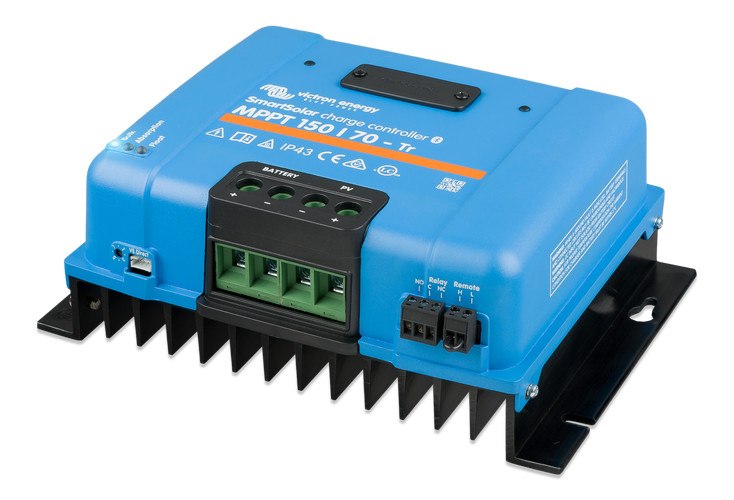

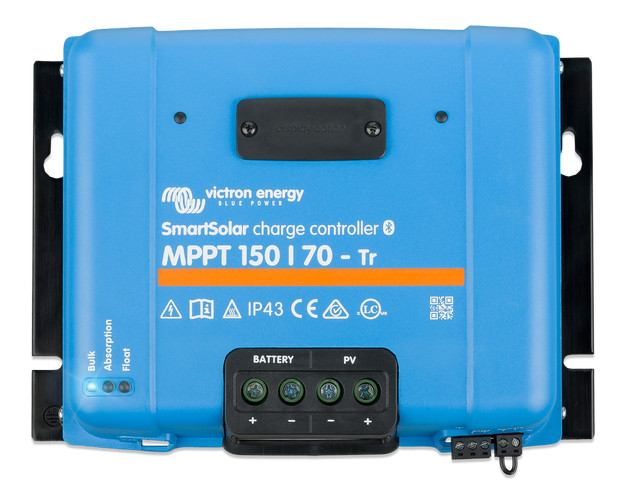

  SmartSolar 150/70 MPPT (12/24/48V) Tr 08002VT033 3360.00 185 x 250 £542.52 £6.25 Full Details

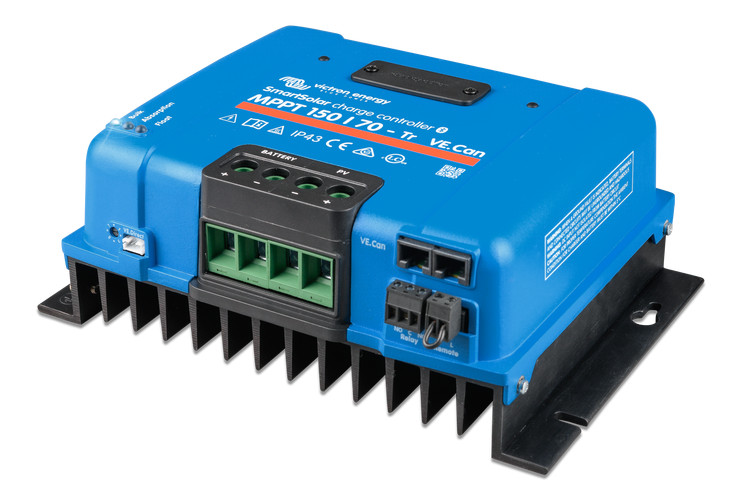

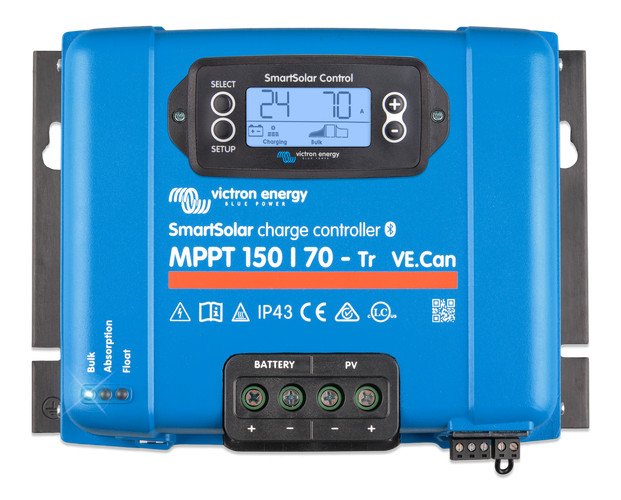

  SmartSolar 150/70 MPPT (12/24/48V) Tr-VE.Can 08002VT034 3360.00 185 x 250 £587.08 £6.25 Full Details

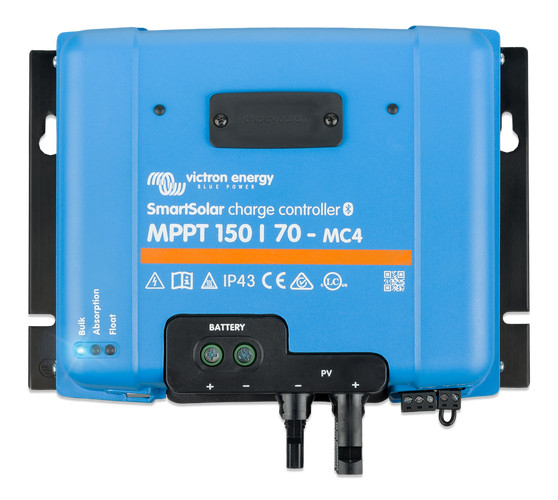

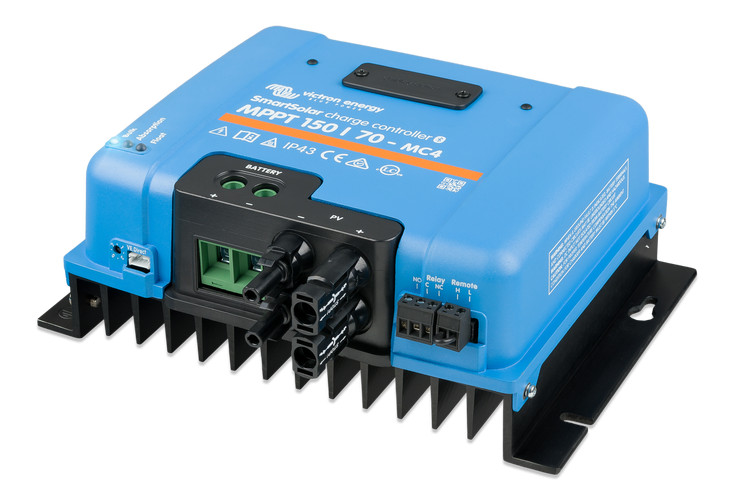

  SmartSolar 150/70 MPPT (12/24/48V) MC4-VE.Can 08002VT035 3360.00 215 x 250 £587.08 £6.25 Full Details

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will increase energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

BatteryLife: intelligent battery management

When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.

The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programming, real-time data and history display options

A smartphone or other Bluetooth-enabled device is required to connect to SmartSolar controllers. VE.Direct Bluetooth Smart dongle is required to connect to a BlueSolar controller.

Highlights:

  • Bluetooth enabled (Bluetooth dongle needed for BlueSolar model)
  • Ultra-fast Maximum Power Point Tracking (MPPT)
  • Advanced Maximum Power Point Detection in case of partial shading conditions
  • VE.Direct communication port and VE.Can (Up to 25 units)
  • Available with screw terminals or MC4 (solar) terminals
  • Up to 98% efficient
  • 8 preprogrammed algorithms selectable with a rotary switch
  • Electronic protection:
    • Over-temperature
    • PV short circuit, reverse polarity and reverse current
  • Internal temperature sensor, compensates absorption and float charge voltages
  • 5 years warranty
  • *
  • *
  • *
  • *
