Victron BlueSolar PWM-LCD&USB Charge Controller Range
|Name||Code||Power (W)||Dim. (L x W mm)||Price||UK Del.|
|BlueSolar PWM-LCD&USB 5A (12/24V)||08002MC21||0.00||169 x 96||£31.68||£6.25||Full Details|
|BlueSolar PWM-LCD&USB 10A (12/24V)||08002MC22||0.00||169 x 96||£36.64||£6.25||Full Details|

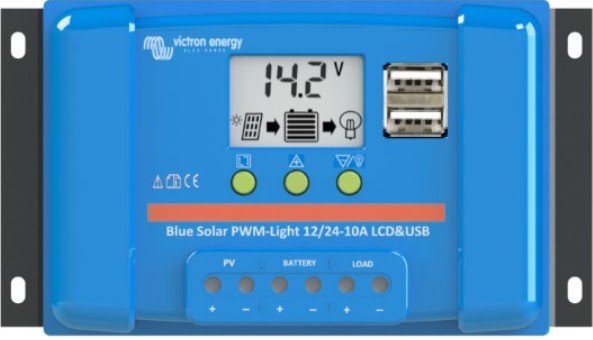

The Victron PWM-LCD&USB is suitable for small solar systems comprising of one or two panels. The liquid crystal display allows you to monitor the battery and solar so you can keep track of their performance. Using the display you are also able to apply different settings that you require.
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
The connect and disconnect voltages are adjustable. The maximum sustainable load is the Amp rating of the controller, 5 amps or 10 amps.
Day/night timing of the load output:
This option allows for a pre-set ON-time after dusk.
Programmable battery charge algorithm:
Pre-programmed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)
Two 5 Volt USB outputs:
Maximum current (both outputs combined): 2A
