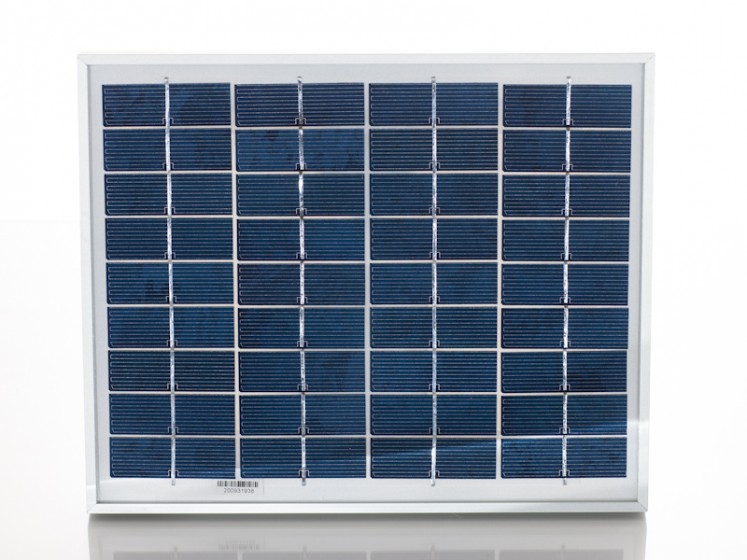

10W Yingli Solar polycrystalline panel
06001JP01Click to enlarge product image
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| 10W Yingli Solar polycrystalline panel | 06001JP01 | 10.00 | 350.0 x 285.0 | £60.00 | £6.25 | Full Details | |
| 20W Yingli Solar polycrystalline panel | 06001JP02 | 20.00 | 350.0 x 525.0 | £110.00 | £6.25 | Full Details | |
| 30W Yingli Solar polycrystalline panel | 06001JP03 | 30.00 | 510.0 x 535.0 | £175.00 | £6.25 | Full Details | |
| 40W Yingli Solar polycrystalline panel | 06001JP04 | 40.00 | 660.0 x 540.0 | £200.00 | £6.25 | Full Details | |
| 60W Yingli Solar polycrystalline panel | 06001JP05 | 60.00 | 660.0 x 630.0 | £250.00 | £6.25 | Full Details | |
| 90W Yingli Solar polycrystalline panel | 06001JP06 | 90.00 | 1010.0 x 660.0 | £350.00 | £6.25 | Full Details | |
| 130W Yingli Solar Polycrystalline Panel | 06001JP07 | 130.00 | 1470.0 x 680.0 | £500.00 | £6.25 | Full Details |
Yingli's polycrystalline solar panels offer superb value for money. These 12V panels are suitable for a range of professional and DIY applications.
- Heavy duty anodised aluminium frame provides high wind resistance and convenient mounting access.
- Cells are laminated between high transmissivity, low iron, 3mm tempered glass and a sheet of TPT material and finally two sheets of EVA to prevent moisture entering the module.
- Installation holes for standard bracket systems are located on the frame.

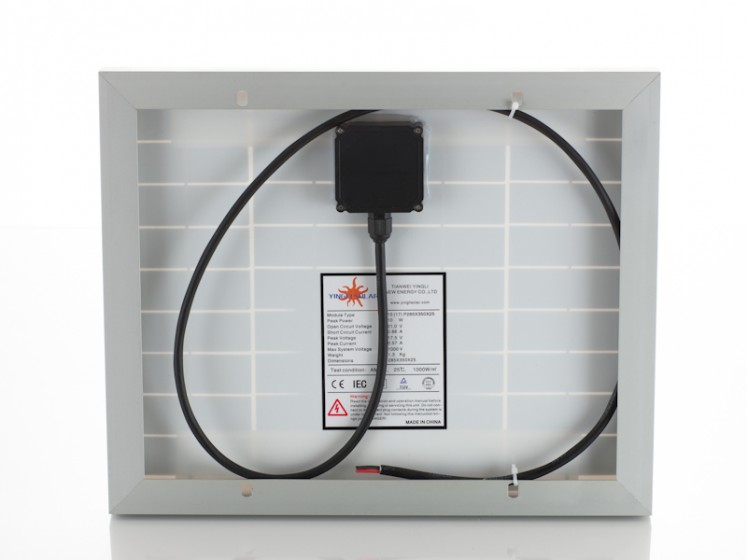

- Waterproof versatile junction box provides flexibility of connections.
- Modules are manufactured in accordance with IEC 61215.
- 25 years limited output guarantee.
- Require blocking diodes if not used with a regulator.
- Dimensions: 350 x 285 x 25mm, 1.3kg
- Operating power 10W: 0.66A @ 17.5V
Related Documents
- 10W-Yingli-datasheet
- Yingli Data Sheet
