Jinko Solar Panels

jinko 380w panel
jinko 380w panel
  Name Code Power (W)   Dim. (L x W mm) Price UK Del.
  380W Tiger Tr P Type Mono 05005JK01 380.00 1855 x 1029 £226.97 £99.00 Full Details
  400W Jinko Tiger Tiling Ribbon Technology P Type Mono 05005JK02 400.00 1855 x 1029 £236.86 £99.00 Full Details
  Tiger Neo Panel 420w 54 Cell Mono JK03M 05005JK03 420.00 1722 x 1134 £247.62 £99.00 Full Details
  Tiger Neo 420Wp TOPCon N-Type 54cell All Black Monocrystalline with Connector Type JK03 05005JK04 420.00 1722 x 1134 £260.17 £99.00 Full Details
  Tiger Neo 470Wp TOPCon N-Type Mono Black Frame 05005JK05 470.00 1903 x 1134 £290.68 £99.00 Full Details
  • Rating: 380W
  • Efficiency: 19.9%
  • Width: 1,029mm
  • Height: 1,855mm
  • Price per Watt: (30.2p/Wp)

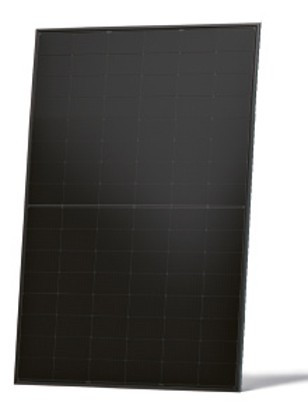

Jinko Tiger Tiling Ribbon Technology 380Wp All Black P-Type Mono-Crystalline. By adding TR Technology with Half Cell, it eliminates the cell gap and increased the module efficiency up to 20.69%!

More great features of the Jinko Tiger P-Type:

  • TR technology with Half cell aims to eliminate the cell gap to increase module efficiency (mono-facial up to 19.91%)
  • 9BB Technology, decreases the distance between bus bars and finger grid line which is a benefit to power increase.
  • Higher lifetime Power Yield, 2.5% first year degradation and then only a 0.6% linear degradation
  • Incredible product warranty of 12 years and a 25-year linear power warranty
  • Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
NOTICE: JK03M connectors are not compatible or tested with MC4 - we do not recommend mixing these connectors. Replacing JK03M connectors with MC4 connectors will not invalidate the warranty of the module as long as they are cut and crimped appropriately using the correct crimping tools.

Tiger TR 380Wp All Black P-Type Mono with JK03M connector Part No: JKM380M-6RL3-B-JK03M Panels - Monocrystallines


  • *
  • *
  • *
  • *
