Dual Battery Motorhome Kits

Dual Battery Motorhome KitClick to enlarge product image
Dual Battery Motorhome Kit
  Name Code Power (W)   Dim. (L x W mm) Price UK Del.
  115W Dual Battery Motorhome Kit 05002DB04 115.00 1015 x 668 £335.00 £15.00 Full Details
  175W Dual Battery Motorhome Kit 05002DB05 175.00 1485 x 668 £435.00 £25.00 Full Details

These solar power kits include a dual battery controller to charge the primary and the leisure batteries in your motorhome. Each battery is charged independently of the other. The controller prevents overcharging yet uses no power in standby mode.

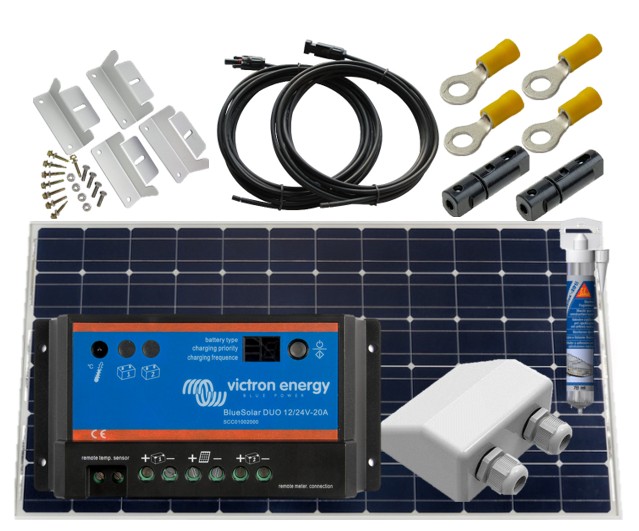

These kits include a solar panel, controller, mounting brackets, fixings, cable gland and sealant. (Batteries are not included).

Simple to install. The fixing kit is for permanently mounting the solar panel on the flat roof of your motorhome or narrowboat (or caravan if you have two leisure batteries in use).

The panels are fitted with high transmission glass and bypass diodes, which means they make the most of sunlight and minimise the effect of shadows.

Details:

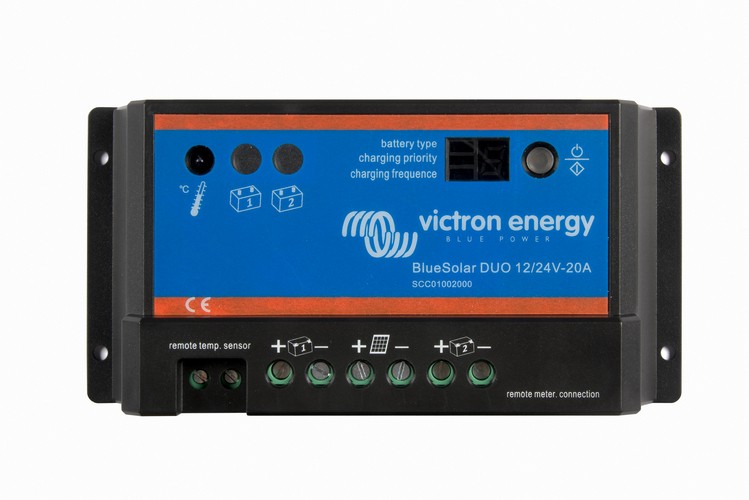

  • 20A Victron 12/24V Dual Battery Solar Controller
  • High power monocrystalline framed Victron solar panel with a weatherproof junction box & screw terminals

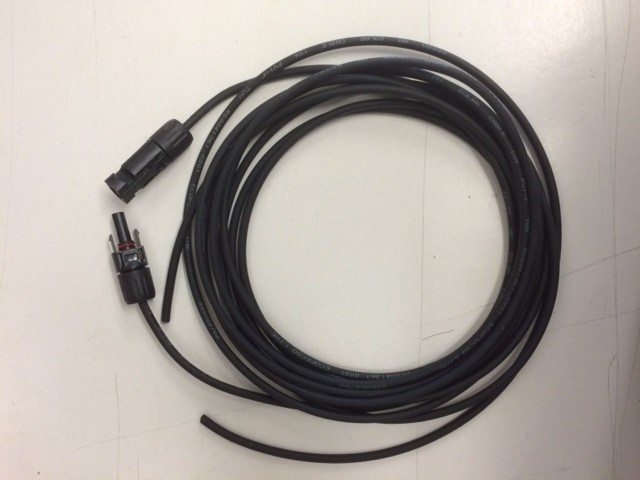

  • Multi Contact 3m extension cable pair with MC4 connectors
  • 2 x 1m fused battery cable with ring connectors to fit to the batteries
  • Simple mounting brackets, cable gland and 70ml Sikaflex sealant
  • Full illustrated instructions with no soldering or difficult wiring needed

Technical Specification:
See individual kits for more information

  • *
  • *
  • *
  • *
