Blue Smart IP22 Charger 12/20(1) 230V UK

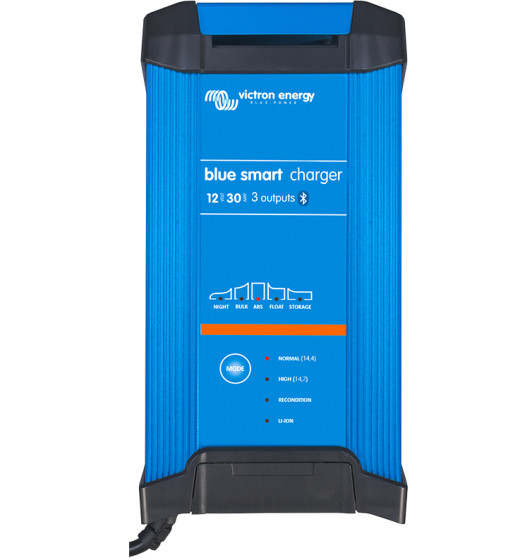

IP22 imageClick to enlarge product image
IP22 image
  Name Code Power (W)   Dim. (L x W mm) Price UK Del.
  Blue Smart IP22 Charger 12/15(1) 230V UK 08004VT007 180.00 235 x 108 £164.59 £6.25 Full Details
  Blue Smart IP22 Charger 12/15(3) 230V UK 08004VT008 180.00 235 x 108 £189.22 £6.25 Full Details
  Blue Smart IP22 Charger 12/20(1) 230V UK 08004VT009 240.00 235 x 108 £195.70 £6.25 Full Details
  Blue Smart IP22 Charger 12/20(3) 230V UK 08004VT010 240.00 235 x 108 £221.62 £6.25 Full Details
  Blue Smart IP22 Charger 12/30(1) 230V UK 08004VT012 360.00 235 x 108 £235.87 £6.25 Full Details

Bluetooth Smart
The wireless solution to monitor voltage and current, to change settings and to update the charger when new
features become available.
High efficiency
With up to 94 % efficiency, these chargers generate up to four times less heat when compared to the industry
And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than
the industry standard.
Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storage
The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive
feature will automatically optimize the charging process relative to the way the battery is being used.
Fully programmable charge algorithm
Absorption, Float and Storage voltages as well as the Recondition setting and the temperature compensation
value can be programmed with the Bluetooth app.
After enabling the Expert mode, the app allows changing practically all parameters and time limits used by the
charge algorithm.
Storage Mode: less maintenance and aging when the battery is not in use
The storage mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the storage
mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the
positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature
prevents stratification of the electrolyte and sulfation, which are major causes of early battery failure.
Also charges Li-ion batteries
Li-ion batteries are charged with a simple bulk – absorption – float algorithm.
Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts.
Will reconnect to a fully discharged Li-ion battery with internal disconnect function.
NIGHT and LOW setting
When in NIGHT or LOW mode, the output current is reduced to max. 50 % of the nominal output and the charger
will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended
Protected against overheating
Output current will reduce as temperature increases up to 50 °C, but the Blue Smart Charger will not fail.
Eleven LEDs for status indication
MODE button to set: NORMAL (14,4 V) / HIGH (14,7 V) / RECONDITION / LI-ION.
Forty cycle history log
The history screen contains historical usage data over the charger’s lifetime and detailed statistics for the last 40
charge cycles.
VE.Smart Networking
The VE.Smart Network is a wireless device to device (D2D) communication network between Victron products,
using Bluetooth Smart.
Optional battery voltage and temperature compensation, and current sensing
The VE.Smart Network opens the possibility to optimize the charge process: a Smart Battery Sense, Smart
Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature to one or more
battery chargers. A Smart Battery Monitor or SmartShunt will also communicate battery current.
Synchronized parallel charging
Synchronize up to ten battery chargers in a VE.Smart network to make them charge a battery as if they were one
large charger. The chargers will synchronize the charge algorithm between them. They will simultaneously switch
from one charge state to another, for example from bulk to absorption.
Synchronized parallel charging has several interesting advantages:
- Redundancy: if one charger stops for whatever reason, the other chargers will continue to operate.
- Flexibility: simply add a charger to the network if more current is needed.
- Cost: several low power chargers will in general cost less than one high power charger.

  • *
  • *
  • *
  • *
